The standard for international standardization system to meet all walks of life

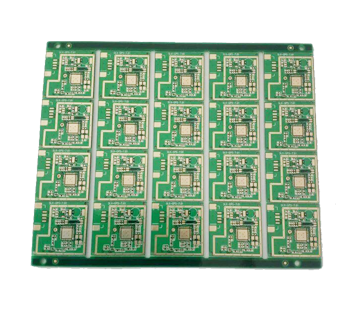

Communications filter plate
Items | through hole Panel | HDI Panel |
---|---|---|
Max layers | 8L | 8L |
thickest | 7.0mm | 2.0mm |
thinnest | 0.33mm(4tier) | 0.8mm(8tier) |
Minimum line width/line distance | 0.075/0.075mm | 0.065/0.065mm |
The small hole/bonding pad | 0.15/0.40mm(through hole) | 0.1/0.25mm( blind hole) |
Copper Thickness | 6 oz | 1.5 oz |
ratio of thickness and radius | 10:1 | 0.8:1 |
Hole Position Deviation | +/-0.05mm | +/-0.05mm |
PTH Hole Position Deviation | +/-0.05mm | +/-0.05mm |
HDI Degree | / | 3+N+3 |
Communications filter plate
Items | through hole Panel | HDI Panel |
---|---|---|
Max layers | 8L | 8L |
thickest | 7.0mm | 2.0mm |
thinnest | 0.33mm(4tier) | 0.8mm(8tier) |
Minimum line width/line distance | 0.075/0.075mm | 0.065/0.065mm |
The small hole/bonding pad | 0.15/0.40mm(through hole) | 0.1/0.25mm( blind hole) |
Copper Thickness | 6 oz | 1.5 oz |
ratio of thickness and radius | 10:1 | 0.8:1 |
Hole Position Deviation | +/-0.05mm | +/-0.05mm |
PTH Hole Position Deviation | +/-0.05mm | +/-0.05mm |
HDI Degree | / | 3+N+3 |
double-sided printed circuit board of the company, the products
are widely used in communications, computer, consumer electronics and other fields, the company since the
establishment of scale expands unceasingly, the performance is constantly rising, currently has a full set
of the most advanced production equipment, strong technical force and strong professional spirit of senior
management personnel.

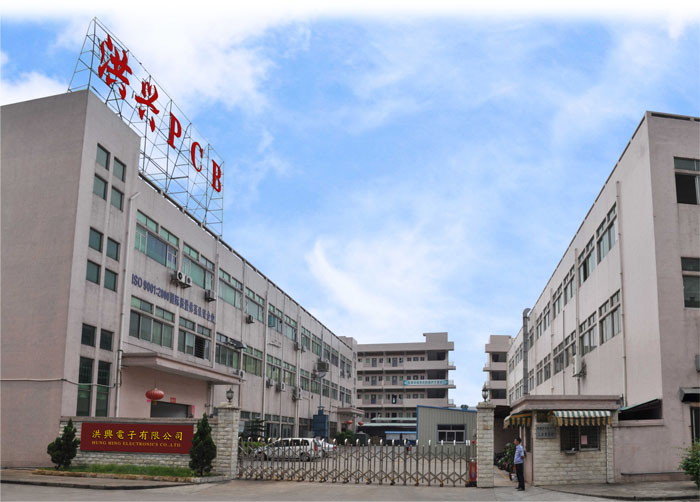

Company plant covers an area of 8000 square meters, equipment
more than 120, now has more than 350 employees, to produce a single panel of 60000 square meters, double
panel of 10000 square meters.See More
Company News
The annual Dragon Boat Festival in close again! For the Chinese, this is a very important holiday. Hongxing circuit board factory to make better friends after the Dragon Boat Festival, specially prepared rice dumplings festival "package". 【More】
